HAOCOOL

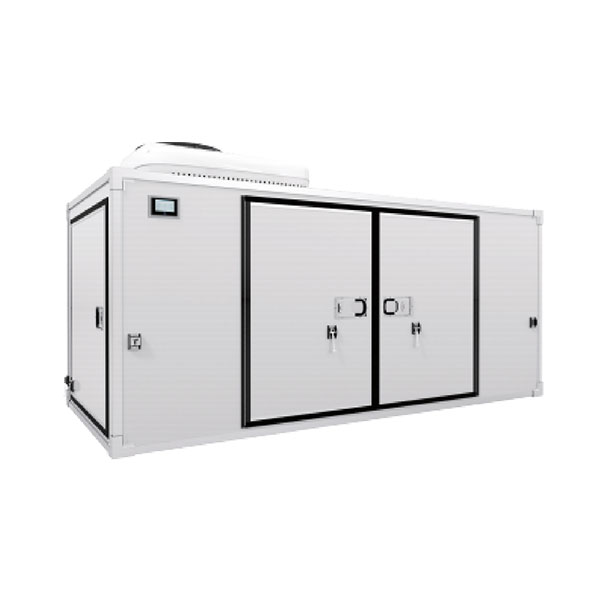

Unmanned cold-chain delivery vehicle
Product Introduction
It employs a low-voltage DC variable-frequency system that connects directly to the autonomous vehicles battery system, eliminating the need for an inverter module.
Soft start, no inrush current, and protection for battery life.
Adjust the cooling capacity on demand rather than operating at full power continuously, thereby saving electricity and ensuring extended battery life.
Supports the CAN bus for autonomous vehicles, enables full-system integration, and provides platform-level compatibility; it is not an external auxiliary unit, but rather an integral part of the vehicles overall system.
Intelligent remote APP diagnostics enable truly unmanned cold-chain operations.
Specifications
| Specification | Details |
| Power Source | Fully Electric |
| Autonomous Driving Level | Level 4 (L4) |
| Compatible Vehicle Types | Various Autonomous Vehicles |
| Cold Box Dimensions (L × W × H) (mm) | 3323 × 1320 × 1342 |
| Outdoor Unit Dimensions (mm) | 903 × 656 × 250 |
| Indoor Unit Dimensions (mm) | 744 × 574 × 220 |
| Insulation Material (Optional) | XPS Fiberglass / Polyurethane (PU) / Rock Wool, 75 mm Thickness |
| Temperature Range (°C) | -18°C to +10°C |
| Cold Chain Cargo Volume (m³) | 5.3 |
| Compressor Model | C-HRA2419AD48V |
| Refrigerant | R404A |
| Charging Time | 6 Hours (Standard); 3.4 Hours (Optional) |
