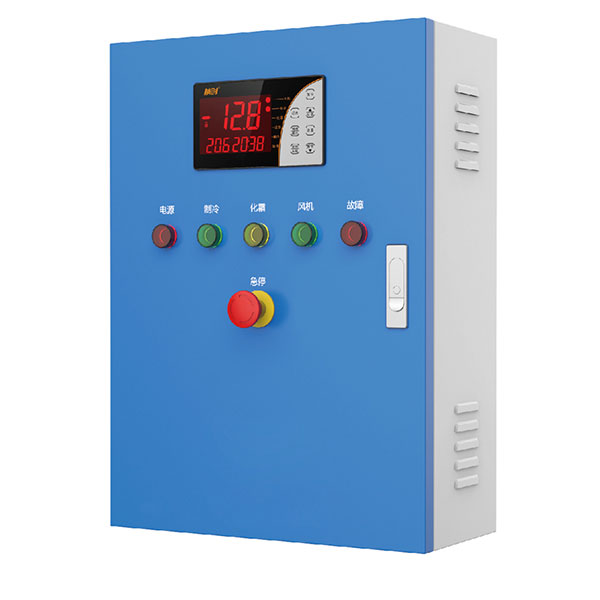

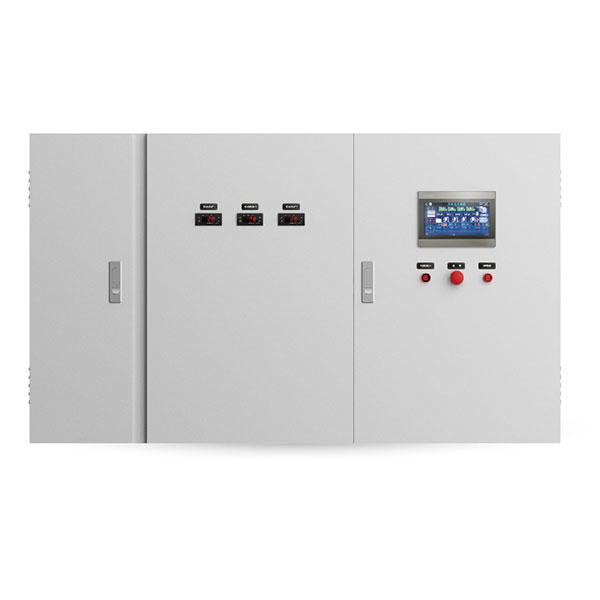

A cold storage PLC electrical control panel is an intelligent control system designed to manage and monitor refrigeration equipment in cold rooms, freezer warehouses, food processing facilities, and industrial cold chain projects. By integrating PLC control technology with refrigeration components, sensors, protection devices, and communication interfaces, the control panel can automate the operation of compressors, evaporators, condensers, fans, defrost systems, pumps, and other refrigeration equipment.

HAOCOOL provides customized PLC control panels for cold storage refrigeration systems, designed according to refrigeration capacity, temperature requirements, equipment configuration, power supply, and project control requirements.

Intelligent Refrigeration Control

Traditional refrigeration systems may require frequent manual operation and monitoring. A PLC-based control panel can automatically coordinate multiple refrigeration components according to programmed operating logic.

The system can manage:

• Compressor start and stop
• Evaporator fan operation
• Condenser fan control
• Defrost cycles
• Temperature monitoring
• High and low-pressure protection
• Overload protection
• Refrigeration system alarms
• Automatic fault handling

This helps improve operational stability and reduce unnecessary manual intervention.

Accurate Temperature Management

Temperature sensors installed inside the cold room continuously transmit operating data to the control system. The PLC compares the actual temperature with the preset parameters and controls the refrigeration equipment accordingly.

Different rooms can also be configured with independent temperature settings, making the control panel suitable for multi-temperature cold storage warehouses.

For example, a project may include separate rooms for chilled food, frozen food, blast freezing, and fruit and vegetable storage. Each area can operate according to its own control parameters.

Automatic Defrost Control

Ice accumulation on evaporator coils can reduce heat transfer efficiency and airflow. The PLC control panel can automatically manage defrost cycles according to programmed schedules or operating conditions.

Available control functions may include:

• Defrost start and stop
• Defrost duration
• Fan delay
• Drainage time
• Defrost temperature monitoring
• Automatic recovery to refrigeration mode

The actual control strategy can be customized according to the refrigeration system and operating environment.

Main Parameters

Safety and Protection

Refrigeration equipment operates continuously and may experience variations in electrical load, pressure, temperature, and operating conditions. The PLC electrical control panel therefore integrates multiple protection functions.

Depending on the project, the system can monitor compressor overload, phase loss, abnormal pressure, temperature deviation, sensor failure, and other operating conditions.

When an abnormal condition occurs, the system can generate an alarm and execute programmed protection logic to help prevent equipment damage.

Remote Monitoring and Data Management

For large industrial cold storage facilities, PLC control panels can be integrated with HMI touchscreens, remote monitoring platforms, or centralized management systems.

Operators can view:

• Room temperature
• Compressor status
• Evaporator status
• Defrost status
• Alarm information
• Operating parameters

This makes daily operation and maintenance more convenient, especially for large multi-room cold storage warehouses.

Customized for Cold Storage Projects

The control panel should be selected according to the actual refrigeration system rather than using a standardized configuration for every project.

Important factors include compressor type, refrigeration capacity, number of cold rooms, temperature range, defrost method, condenser configuration, electrical supply, automation requirements, and communication functions.

HAOCOOL provides customized PLC electrical control solutions for cold storage and industrial refrigeration projects. The control system can be integrated with refrigeration equipment, cold room sensors, evaporators, condensers, compressors, alarm systems, and remote monitoring platforms.

A properly designed PLC control panel helps improve temperature stability, equipment protection, operating efficiency, and cold storage management, providing an important automation foundation for modern commercial and industrial cold chain facilities.
