Project Category: Electronic Device Explosion-Proof Cold Storage, Low-Temperature Cold Storage Project
Project Period: 30 Days
Cooperation Year: 2019, 2021
Acceptance Date: October 2019, August 2021, June 2022
Project Requirements: Jiangsu Jiejie Micro-Electric Device Production Line Explosion-Proof Cold Storage Project, constructed by our company HAOCOOL Refrigeration, is mainly used to store electronic devices. The project has a total of 3 phases, 600 cubic meters. According to the actual needs of customers, it is planned to build a cold storage for the power electronic device production line, hexahedron, with a storage temperature of 0-5℃ and adjustable temperature; management needs to meet centralized control; under the premise of controlling costs, select high-efficiency and energy-saving solutions and equipment; meet the main requirements of the URS document.
Project Overview:
(1) The total area of the electronic device explosion-proof cold storage is 200 square meters/volume is 600 cubic meters.

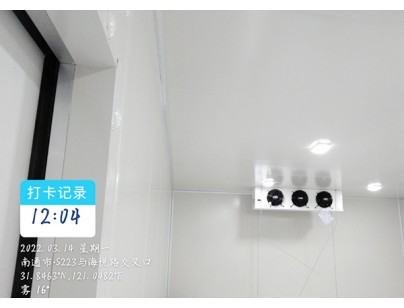

(2) The refrigeration system is equipped with two sets of 7HP American imported Emerson scroll compressor units (including air-cooled condensers, etc.), one for use and one for backup. The units have large cooling capacity, high cost performance, and are safe and reliable. The cold storage is also equipped with two sets of Swedish Baier BMT122H-C series high-efficiency strong wind air coolers, one for use and one for backup. The fans are stable and low-noise, and have a long air supply distance, which makes the temperature in the warehouse drop quickly, greatly enhances the defrosting effect, and increases rapid convection circulation, thereby achieving temperature uniformity in every corner.
(3) In terms of the warehouse board, the electronic device low-temperature cold storage project uses 100mm polyurethane double-sided color steel plate insulation warehouse board. The insulation board has the characteristics of moisture-proof, waterproof, and fire-proof, and the flame retardant standard is B1 level, which ensures the realization of a stable low-temperature environment in the cold storage while greatly reducing the subsequent operating costs.
(4) The temperature control system adopts an original imported fully automatic temperature control system. The control system has the function of automatically adjusting the temperature in the warehouse, and has functions such as temperature and humidity alarm, data recording, and mobile client monitoring.
Design features: Environmentally friendly Freon refrigeration
