Fresh Food and Catering Cold Storage Project

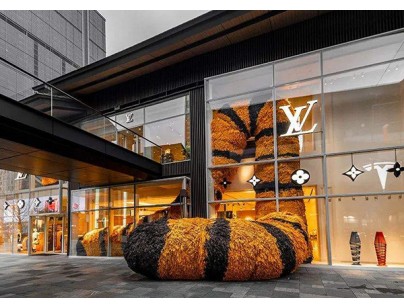

Chengdu LV Louis Vuitton Taikoo Li Store Restaurant Kitchen Cold Storage Construction Plan

  Project Category: Restaurant Cold Storage, Kitchen Cold Storage, Restaurant Kitchen Cold Storage, Low Temperature Cold Storage Project

  Project Period: 15 Days

  Year of Cooperation: 2022

  Acceptance Date: June 2022

Chengdu LV Louis Vuitton Taikoo Li Store Restaurant Kitchen Cold Storage Construction Plan插图   Project Requirements: Chengdu LV Taikoo Li Store Restaurant Kitchen Cold Storage Construction Project, signed by Shanghai Rongchen Trading Co., Ltd. and our company Haoshuang Refrigeration, our company is responsible for the construction and construction of the restaurant kitchen cold storage, and plans to build three restaurant kitchen cold storages, two fresh-keeping storages (temperature is 8℃), and one low-temperature freezer (temperature is -18℃). The project will be completed on June 26, 2022; management needs to meet centralized control; under the premise of controlling costs, select high-efficiency and energy-saving solutions and equipment; meet the main requirements of the URS file.

  Project Overview:

  (1) The total area of ​​the restaurant kitchen cold storage is 16 square meters, the floor height is 2.8 meters, and the total volume is 46 cubic meters; of which 1# fresh-keeping storage is 16 cubic meters, 2# fresh-keeping storage is 13 cubic meters, and 3# freezer is 14.5 cubic meters.

  (2) Warehouse: The floor load-bearing material installed in the kitchen cold storage is anti-slip aluminum plate, and the auxiliary materials installed in the storage body, such as silica gel, seals, foam glue, etc., are all selected from national standard domestic brands.

Chengdu LV Louis Vuitton Taikoo Li Store Restaurant Kitchen Cold Storage Construction Plan插图1

  (3) Refrigeration system: The restaurant kitchen cold storage is installed with 3 sets of 3HP compression condensing box-type integrated units (Bitzer piston compressor (including compressor, air-cooled condenser, etc.)); the cold storage uses Lu Wei brand to install 3 high-efficiency air coolers; the project installs 3 sets of air cooler hangers using national standard brands; the liquid supply expansion valve installed in this project uses Danfoss brand.

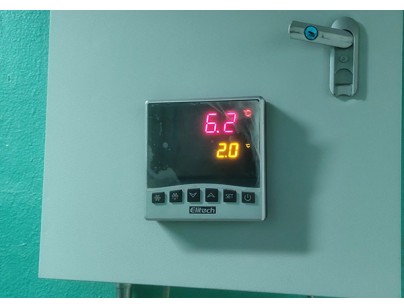

  (4) Electrical system: The cold storage project uses 3 sets of Gemei brand electronic air pressure balance windows; the project installs 6 sets of cold storage special lights (LED waterproof and explosion-proof lights); the project uses 3 sets of Haoshuang customized cold storage unit equipment electric control boxes.

  (5) Pipeline system: The installed refrigerant copper connecting pipes are all Longyu/Hailiang brand; the insulation pipes and wrapping tapes are Huamei brand; the bridges and wire pipes installed in the cold storage are all national standard brands.

  Design features: environmentally friendly Freon refrigeration, direct expansion liquid supply
