Yunnan Zhengbang Technology Chemical Explosion-proof Cold Storage Project Construction Plan

　　Project Category: Low-temperature Hazardous Chemical Explosion-proof Cold Storage Project

　　Project Period: 60 Days

　　Cooperation Year: 2022

　　Acceptance Date: January 2022

　　Project Requirements:

　　(1) Yunnan Zhengbang Technology 320 cubic meters low-temperature chemical explosion-proof cold storage construction project is undertaken by our company HAOCOOL. It is expected to be completed within 60 days. The two parties officially signed a cooperation agreement on October 17, 2022. HAOCOOL has been engaged in the construction of chemical explosion-proof cold storage for more than ten years. It has a complete range of cold storage installation qualifications, rich explosion-proof cold storage completion cases, and a professional cold storage construction team. It is a well-known integrated cold storage project integrator.

　　(2) Hazardous chemical explosion-proof cold storage project is mainly used to store hazardous chemicals and is required to meet the safety of the factory’s production. According to the actual cold storage construction needs of customers, a total of one pentahedral chemical explosion-proof cold storage is newly built, with a temperature requirement of -20℃~-32℃. The cold storage covers an area of ​​nearly 100 square meters, with a total construction volume of 320 cubic meters and a net height of 3.2 meters. Management meets centralized control and must meet the explosion-proof standards for storage cold storage. Under the premise of controlling costs, high-efficiency and energy-saving solutions and cold storage explosion-proof equipment are selected. Meet the main requirements of the URS document. Meet the cold storage explosion-proof certification standards. It is required to ensure that the cold storage meets the explosion-proof standard requirements and ensure the safe storage of hazardous chemicals.

　　Solution Overview:

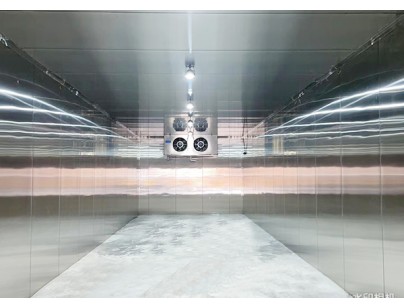

　　(1) The insulation walls and top plates of the hazardous chemical explosion-proof cold storage are made of 200mm thick polyurethane insulation boards, double-sided stainless steel 0.8mm thick, B1 grade flame retardant, and the ground insulation uses 50mm*4 layers of XPS extruded boards with cross-staggered seams. The cold storage door has a total of two double-sided stainless steel double-opening sliding doors, equipped with explosion-proof auxiliary materials, and the explosion-proof level is ExdIIBT4.

　　(2) The refrigeration unit uses explosion-proof equipment from Bitzer and Levitra, a total of 2 units, semi-enclosed air-cooled box units, two compressors use thermal fluorine defrosting, the internal connection materials are all explosion-proof, and the air coolers are both used in one for use and one for backup.

　　(3) The electronic control system and other materials are also explosion-proof, and the outdoor control cabinet is rainproof. It uses Siemens PLC electronic control for cold storage + backup mechanical backup temperature controller.

　　Design features: Environmentally friendly Freon refrigeration
