Project category: pharmaceutical cold storage, gmp cold storage, pharmaceutical cool storage, pharmaceutical cold storage project
Project period: 30 days
Year of cooperation: 2019
Acceptance date: September 2019
Project requirements: Yangtze River Pharmaceutical Group Co., Ltd. is a large-scale pharmaceutical enterprise group that integrates cross-regional, industry-university-research, science, industry and trade. In order to meet the storage needs of drugs, it is necessary to build a 15,000 cubic meter standard gsp pharmaceutical cool storage. The pharmaceutical cool cold storage is constructed by our company Haoshuang Refrigeration. The project was accepted and put into use in September 2019.
Project Overview:
(1) The drug cool warehouse is located in Taizhou, Jiangsu, with a total building volume of 15,000 cubic meters. The drug cool warehouse is divided into two rooms. The 1# cool warehouse covers an area of 876 square meters, the warehouse temperature is 15~19℃, and the humidity is ≤65%; the 2# cool warehouse covers an area of 1,180 square meters, the warehouse temperature is 20~25℃, the humidity is ≤65%, and the warehouse height is 6.9 meters.

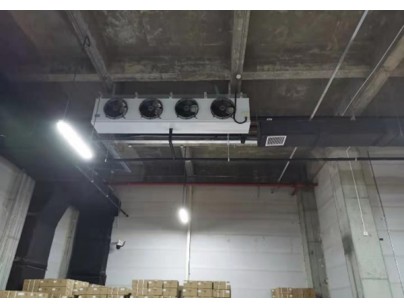

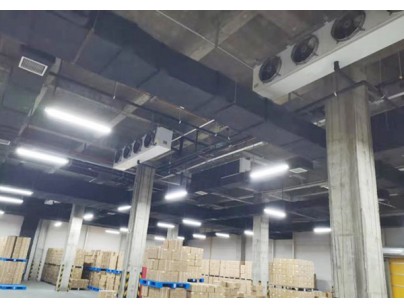

(2) The refrigeration system of this project adopts the American Emerson Copeland scroll compressor unit, which has a large cooling capacity, high cost performance, and is safe and reliable. In addition, the cold storage air cooler is equipped with Zhejiang Gaoxiang series high-efficiency strong wind air cooler, which has stable operation, low noise, and longer air supply distance, making the temperature drop in the warehouse fast and the convection circulation fast, so as to achieve temperature uniformity in every corner.
(3) The warehouse panel adopts 120mm polyurethane double-sided color steel insulation warehouse panel, which is energy-saving and environmentally friendly, with extremely high heat resistance, thus ensuring a stable low-temperature environment for the cold storage while greatly reducing the subsequent operating costs.
(4) The temperature control system adopts an original imported thermostat to adjust the temperature in the warehouse. The controller has an energy-saving function and can set the peak and valley working hours to achieve the effect of reducing electricity bills.
Design features: R404A environmentally friendly Freon refrigeration, barrel pump liquid supply method
