Cold Storage Warehouse For Medical Facilities

Shanghai Jiuzhoutongda 110703 cubic pharmaceutical cold storage construction project

  Project category: pharmaceutical cold storage, pharmaceutical cold storage, logistics cold storage

  Project period: 60 days

  Cooperation year: 2012, 2014

  Acceptance date: October 2012, May 2014

Shanghai Jiuzhoutongda 110703 cubic pharmaceutical cold storage construction project插图

  Project requirements: With the rapid development of the pharmaceutical logistics industry, Shanghai Jiuzhoutong Pharmaceutical Group plans to build 110703 cubic pharmaceutical cold storage to meet its own development needs, a total of 9 sets of pharmaceutical logistics cold storage projects. The two parties signed cooperation agreements in 2012 and 2014 respectively, and the construction has been completed and put into use.

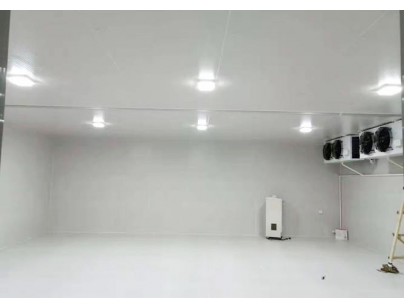

Shanghai Jiuzhoutongda 110703 cubic pharmaceutical cold storage construction project插图1

  Project Overview:

  (1) Jiuzhoutongda Pharmaceutical Cold Storage entered the construction site in April 2012. The cold storage project has a total of 9 sets of pharmaceutical cold storage with a capacity of 110703 cubic meters.

  (2) Design basis: “Cold Storage Design Code” (GB50072-2010), “Combined Cold Storage” (JB/T9061-1999), “Industrial Metal Pipe Design Code” (GB50316), the storage temperature is set at 2-8 degrees, 100mm double-sided color steel polyurethane storage board is used, and the equipment uses Bitzer compressor and air cooler.

  (3) The project was completed at the end of October of that year and passed the acceptance at one time. So far, the cold storage equipment is operating well.

  Design features: environmentally friendly Freon refrigeration, direct expansion liquid supply
